Customizable motor rotor bar
, solder ring stop end 15mm 180mm ID
, rotor bar in motor high Tensile strength

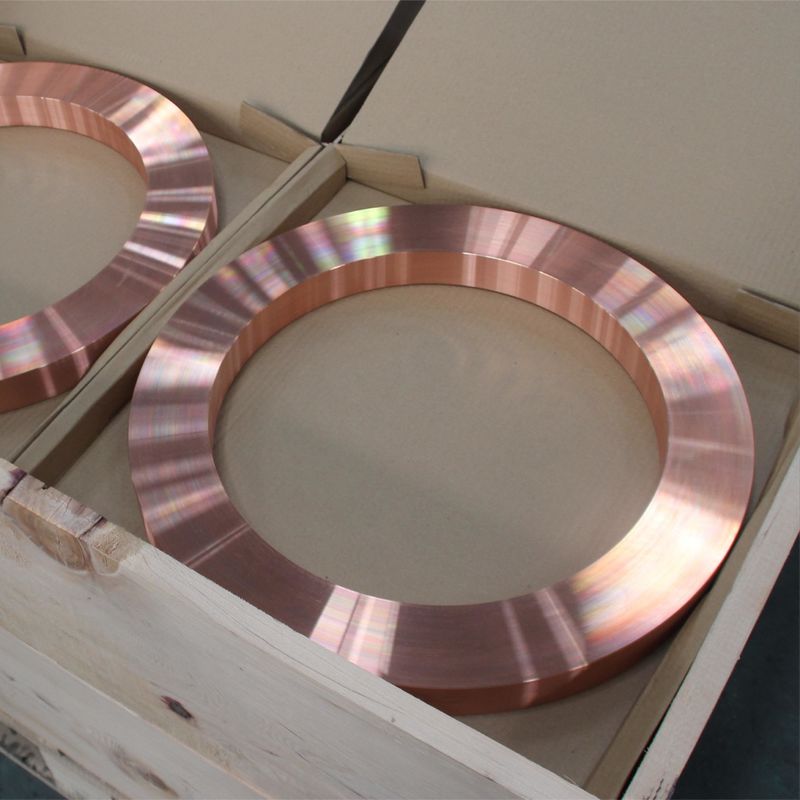

Copper Copper Rotor Bars And Copper End Rings With Long Service Life
Copper Copper Rotor Bars and Copper End Rings with Long service life
Copper rotor bars are an important part of a motor. This is especially true of induction motors. They have a vital role in the conversion of electrical energy into mechanical energy and the generation of rotational motion in the motor. Barrels are typically manufactured from copper and are strategically located within the core of the rotor.
The main function of the rotor bar is the transmission of the induced current within the rotor of the induction motor. When the motor is energised, a rotating magnetic field is created in the stator windings. This rotating magnetic field in turn generates a current in the rotor bar by means of electromagnetic induction.
The rotor bars, being made of conductive material, allow the induced current to flow through them. As the current flows, it creates its own magnetic field, which interacts with the stator's rotating magnetic field. This interaction establishes a torque that causes the rotor to rotate.
The shape, size, and arrangement of rotor bars affect the motor's performance characteristics, such as torque, efficiency, and starting capability. The design of the rotor bars must be carefully engineered to optimize motor performance and ensure reliable operation.
| End ring |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation
(%)
|
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
| OD |
ID |
Thickness |
Cu-ETP CW004A
Cu-OF CW008A |
300-800 |
180-680 |
19-50 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| C18150 |
/ |
≥120 |
≥324 |
15% |
≤0.0227 |
/ |
| |
|
|
|
|
|
|
|
|
|
|
| Rotor bar |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation(%) |
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
Remark |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
4-30 |
10-60 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
The length can be customized |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CU-PHC CW020A
CU-HCP CW021A |
H065 |
65-90 |
/ |
/ |
≤0.01786 |
| C18150 |
R300 |
/ |
≥300 |
≥8 |
≤0.01959 |
/ |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
