customizable ID Rotor Bar
, Round Shaped Rotor Bar
, Round broken rotor bar

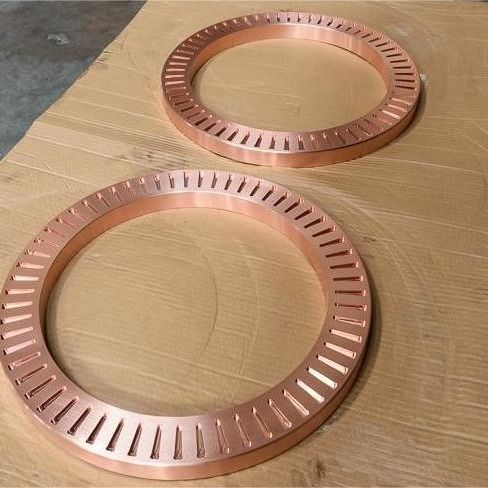

Copper Rotor Bar Customizable For Achieving Efficient Functionality
Copper Rotor Bar customizable for achieving efficient functionality
Introduction: Rotor bars are an essential component of electric motors. They are particularly important in induction motors. They play a crucial role in converting electrical energy into mechanical energy, enabling the motor to generate rotary motion. The rotor bars are typically made of copper or aluminium and are strategically positioned in the core of the rotor.
Function: In an induction motor, the primary function of the rotor bars is to conduct the induced current within the rotor. When the motor is energised, the stator windings produce a rotating magnetic field. This rotating magnetic field induces a current in the rotor bars by electromagnetic induction.
The rotor bars are made of conductive material. They allow the induced current to flow through them. As the current flows, it creates its own magnetic field. This magnetic field interacts with the rotating magnetic field of the stator. This interaction creates a torque that causes the rotor to rotate.
| End ring |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation
(%)
|
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
| OD |
ID |
Thickness |
Cu-ETP CW004A
Cu-OF CW008A |
300-800 |
180-680 |
19-50 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| C18150 |
/ |
≥120 |
≥324 |
15% |
≤0.0227 |
/ |
| |
|
|
|
|
|
|
|
|
|
|
| Rotor bar |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation(%) |
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
Remark |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
4-30 |
10-60 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
The length can be customized |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CU-PHC CW020A
CU-HCP CW021A |
H065 |
65-90 |
/ |
/ |
≤0.01786 |
| C18150 |
R300 |
/ |
≥300 |
≥8 |
≤0.01959 |
/ |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
