Copper Rotor Bars are an important part of a motor, especially in induction motors. They play a vital role in converting electrical energy into mechanical energy and generating rotational motion in the motor. Rotor bars are usually made of copper and are strategically mounted inside the rotor core.
The main function of the rotor bar is to carry the induced current within the rotor of the induction motor. When the motor is energized, a rotating magnetic field is generated in the stator windings. This rotating magnetic field generates current in the rotor bar through electromagnetic induction.
The rotor bars, being made of conductive material, allow the induced current to flow through them. As the current flows, it creates its own magnetic field, which interacts with the stator's rotating magnetic field. This interaction establishes a torque that causes the rotor to rotate.
The shape, size, and arrangement of rotor bars affect the motor's performance characteristics, such as torque, efficiency, and starting capability. The design of the rotor bars must be carefully engineered to optimize motor performance and ensure reliable operation.

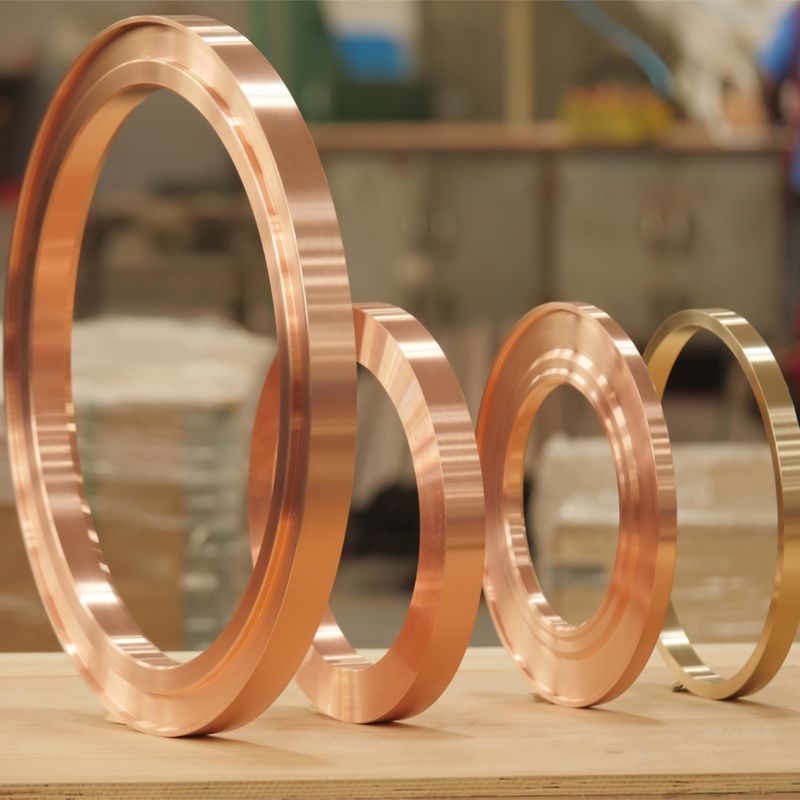

| End ring |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation
(%)
|
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
| OD |
ID |
Thickness |
Cu-ETP CW004A
Cu-OF CW008A |
300-800 |
180-680 |
19-50 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| C18150 |
/ |
≥120 |
≥324 |
15% |
≤0.0227 |
/ |
| |
|
|
|
|
|
|
|
|
|
|
| Rotor bar |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation(%) |
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
Remark |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
4-30 |
10-60 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
The length can be customized |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CU-PHC CW020A
CU-HCP CW021A |
H065 |
65-90 |
/ |
/ |
≤0.01786 |
| C18150 |
R300 |
/ |
≥300 |
≥8 |
≤0.01959 |
/ |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
