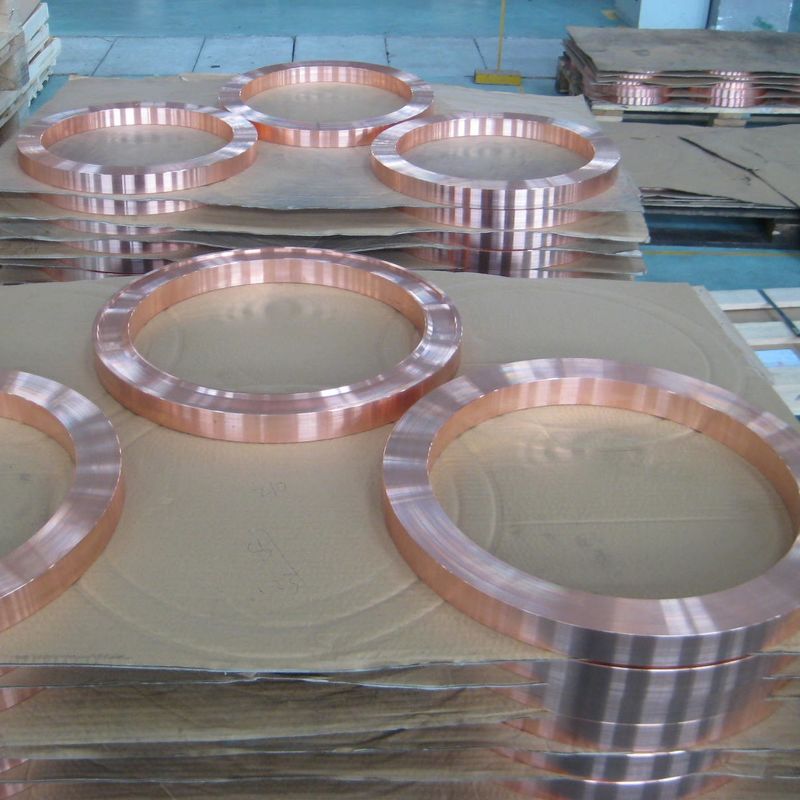

Copper End Ring And Rotor Bar For Electronic Electrical Automotive
Copper End ring and Rotor bar for Electronic Electrical Automotive
Especially in an induction motor, the copper rotor bars are an important part of the motor. They play a vital role in converting electrical energy into mechanical energy. This enables the motor to produce rotary motion. The rotor bars are usually made of copper or aluminium and are strategically placed in the core of the rotor.
In an induction motor, the primary function of the rotor bars is to conduct the induced current within the rotor. When the motor is energised, the stator windings create a rotating magnetic field. By electromagnetic induction, this rotating magnetic field induces a current in the rotor bars.
The rotor bars, being made of conductive material, allow the induced current to flow through them. As the current flows, it creates its own magnetic field, which interacts with the stator's rotating magnetic field. This interaction establishes a torque that causes the rotor to rotate.
The shape, size, and arrangement of rotor bars affect the motor's performance characteristics, such as torque, efficiency, and starting capability. The design of the rotor bars must be carefully engineered to optimize motor performance and ensure reliable operation.
| End ring |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation
(%)
|
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
| OD |
ID |
Thickness |
Cu-ETP CW004A
Cu-OF CW008A |
300-800 |
180-680 |
19-50 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| C18150 |
/ |
≥120 |
≥324 |
15% |
≤0.0227 |
/ |
| |
|
|
|
|
|
|
|
|
|
|
| Rotor bar |
| Grade |
Specification(mm) |
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation(%) |
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
Remark |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
4-30 |
10-60 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
The length can be customized |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CU-PHC CW020A
CU-HCP CW021A |
H065 |
65-90 |
/ |
/ |
≤0.01786 |
| C18150 |
R300 |
/ |
≥300 |
≥8 |
≤0.01959 |
/ |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
