Long Lasting Performance with Copper Contact Wire for Electrified Railway

Product Details

Place of Origin: China

Brand Name: CHAOXIN

Payment & Shipping Terms

Payment Terms: T/T

Get Best Price
Highlight:

Electrified Railway Copper Contact Wire

,

Cu ETP Copper Contact Wire

,

Long Lasting Performance Copper Contact Wire

Strength Of Extension:
580
Resistivity (20℃) Ωmm²/m:
≤0.01777
Grade:
Cu-ETP
Characters:
Easy Installation ,Good Conductivity
Advantage:
Long Service Life
Surface Finish:
Smooth
Corrosion Resistance:
Excellent
Purity:
99.9%
Strength Of Extension:
580
Resistivity (20℃) Ωmm²/m:
≤0.01777
Grade:
Cu-ETP
Characters:
Easy Installation ,Good Conductivity
Advantage:
Long Service Life
Surface Finish:
Smooth
Corrosion Resistance:
Excellent
Purity:
99.9%

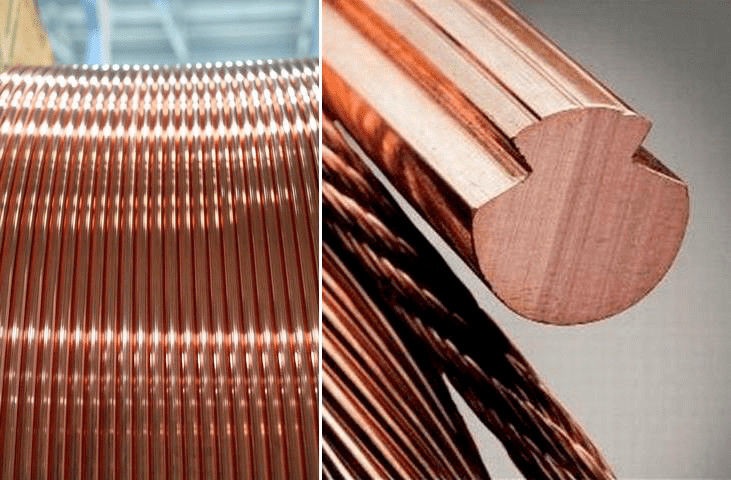

Long Lasting Performance with Copper Contact Wire for Electrified Railway

Long-Lasting Performance with Copper Contact Wire for Electrified Railway​



Copper contact wire is a key electrical connection device used in a range of applications, including electrified railways, urban rail transit, mine conveyors and other systems. Its primary function is to transmit power. It is typically manufactured from copper, offering excellent conductivity and strength, and is able to withstand high mechanical and electrical loads.


The specifications of copper contact wire used in electrified railway mainly include 85mm², 110mm², 120mm², 150mm² and so on. The specifications of copper contact wires are usually classified according to their cross-sectional area, and different specifications of copper contact wires have different electrical properties and mechanical strengths to meet the needs of different electrified railways.

When choosing copper contact wire specifications, factors such as the running speed of the railway, load capacity, current capacity and other factors need to be considered to ensure that the contact wire can safely and reliably transmit electricity.



The advantages of copper contact wire include:

  1. Excellent conductivity: copper contact wire is made of high-quality copper material with good conductivity, which can ensure the efficiency and stability of power transmission.
  2. High strength and oxidation resistance: Copper contact wire is made of high quality materials with high strength and oxidation resistance, which can withstand high strength mechanical and electrical loads and is not easily affected by oxidation in long-term use.
  3. Easy to maintain: Copper contact wire has a simple structure, easy to maintain, and can be replaced with separate parts when damaged, making it easy to repair.
  4. Stable and reliable: Copper contact wire can ensure the stability and reliability of power transmission, thus ensuring the normal operation of the whole tram system.





Copper Contact Wire Specification:



EN 50149-2012
Material Designation Nominal cross
section
mm²
Minimum tensile strength
MPa
Minimum
breaking load
kN
Percentage elongation
after fracture A200
Resistance per kilometre(20℃)
Ω/Km
Resistivity
(20℃)
Ωmm²/m
Reverse bend test Torsional Winding coefficient of temperature Wire mass
kg/km
min.% max.% complete fracture Minimum mass Maximum mass
Normal strength
copper
Cu-ETP
Cu-FRHC
Cu-HCP
CuOF
80 355 27,5 3 10 0,229 ≤0.01777 ≥6 5 3 0.0038 690 733
100 355 34,5 3 10 0,183 862 916
107 350 36,3 3 10 0,171 923 980
120 330 38,4 3 10 0,153 1035 1099
150 310 45,1 3 10 0,122 1293 1374
High strength
copper and
high strength
copper-silver alloy
CuETP
CuFRHC
CuHCP
CuOF
CuAg0,1
80 375 29,1 3 8 0,229 ≤0.01777 ≥6 5 3 0.0038 690 733
100 375 36,4 3 8 0,183 862 916
107 360 37,4 3 8 0,171 923 980
120 360 41,9 3 8 0,153 1035 1099
150 360 52,4 3 8 0,122 1293 1374
Normal strength
copper-silver alloy
CuAg0,1 80 365 28,3 3 10 0,229 ≤0.01777 ≥6 5 3 0.0038 690 733
100 360 34,9 3 10 0,183 862 916
107 350 36,3 3 10 0,171 923 980
120 350 40,7 3 10 0,153 1035 1099
150 350 50,9 3 10 0,122 1293 1374
Copper magnesium
alloy
CuMg0,2
CuMg0,2 (high
conductivity)
80 460 35,7 3 10 0,289 ≤0.02240
≤0.02155
(high
conductivity
)
≥6 5 3 0.0031 690 733
100 450 43,7 3 10 0,231 862 916
107 440 45,7 3 10 0,216 923 980
120 430 50,1 3 10 0,192 1035 1099
150 420 61.1 3 10 0,154 1293 1374
Copper magnesium
alloy
CuMg0,5 80 520 40,4 3 10 0,385 ≤0.02778 ≥6 5 3 0.0027 690 733
100 510 49,5 3 10 0,286 862 916
107 500 51,9 3 10 0,268 923 980
120 490 57,0 3 10 0,239 1035 1099
150 470 68,4 3 10 0,191 1293 1374
Copper-tin
alloy
CuSn0,2
CuSn0,2 (high
conductivity)
80 460 35,7 2 8 0,309 ≤0.02395
≤0.02155
(high
conductivity
)
≥6 5 3 0.0032 / /
100 450 43,7 2.00 8.00 0,247 865 919
107 430 44,6 2.00 8.00 0,231 926 983
120 420 48,9 2.00 8.00 0,206 1038 1103
150 420 61,1 2.00 8.00 0,165 1298 1378



Copper contact wire is used to transmit power to a pantograph of a locomotive. It is also used in power generation, power transmission, power distribution, telecommunications, electronics circuitry, and countless types of electrical equipment. Copper is a superior conductor of electricity and has a low resistance. It is also ductile, inexpensive, and provides an excellent contact surface
