Product Details
Place of Origin: China
Brand Name: CHAOXIN
Payment & Shipping Terms
Payment Terms: T/T
Grade: |
Cu-ETP |
Section Area: |
Customer |
Keyword: |
Copper Contact Wire |
Standard: |
EN 50149-2012 |
OD: |
Custom |
Feature: |
Corrosion Resistant |
Grade: |
Cu-ETP |
Section Area: |
Customer |
Keyword: |
Copper Contact Wire |
Standard: |
EN 50149-2012 |
OD: |
Custom |
Feature: |
Corrosion Resistant |

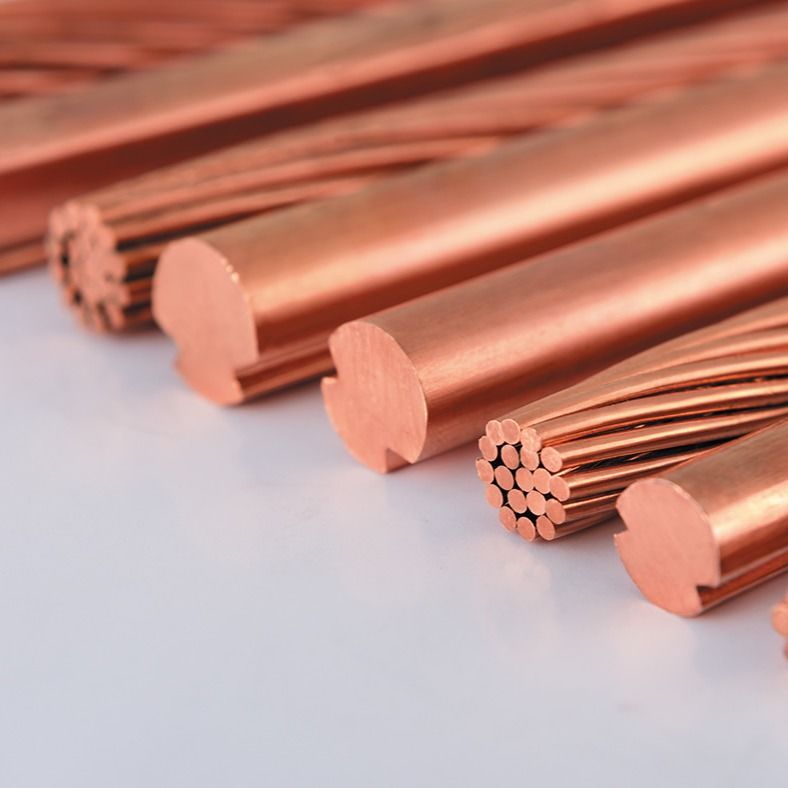

Cu-ETP Grade Conductive Copper Contact Wire Soft Corrosion Resistant
Railroad contact line refers to the metal contact line in the overhead contact network of the electrified railroad which is in contact with the pantograph slide plate of the locomotive and transmits the current, and it is mainly responsible for providing electric power for the electric locomotive on the electrified railroad, and it is one of the key equipments of the electrified railroad.
This product offers the highest commercial-grade conductivity, good corrosion resistance, and good wear characteristics. Trolley wire or contact wire is a single conductor, solid copper, having a hard drawn temper, with different profiles and sections and it is offered according all major specifications (ASTM, DIN, UIC, NFC, BSS, etc)..
Copper Contact Wire Specification:
EN 50149-2012 | ||||||||||||||
Material | Designation | Nominal cross section mm² |
Minimum tensile strength MPa |
Minimum breaking load kN |
Percentage elongation after fracture A200 |
Resistance per kilometre(20℃) Ω/Km |
Resistivity (20℃) Ωmm²/m |
Reverse bend test | Torsional | Winding | coefficient of temperature | Wire mass kg/km |
||
min.% | max.% | complete fracture | Minimum mass | Maximum mass | ||||||||||
Normal strength copper |
Cu-ETP Cu-FRHC Cu-HCP CuOF |
80 | 355 | 27,5 | 3 | 10 | 0,229 | ≤0.01777 | ≥6 | 5 | 3 | 0.0038 | 690 | 733 |
100 | 355 | 34,5 | 3 | 10 | 0,183 | 862 | 916 | |||||||
107 | 350 | 36,3 | 3 | 10 | 0,171 | 923 | 980 | |||||||
120 | 330 | 38,4 | 3 | 10 | 0,153 | 1035 | 1099 | |||||||
150 | 310 | 45,1 | 3 | 10 | 0,122 | 1293 | 1374 | |||||||
High strength copper and high strength copper-silver alloy |
CuETP CuFRHC CuHCP CuOF CuAg0,1 |
80 | 375 | 29,1 | 3 | 8 | 0,229 | ≤0.01777 | ≥6 | 5 | 3 | 0.0038 | 690 | 733 |
100 | 375 | 36,4 | 3 | 8 | 0,183 | 862 | 916 | |||||||
107 | 360 | 37,4 | 3 | 8 | 0,171 | 923 | 980 | |||||||
120 | 360 | 41,9 | 3 | 8 | 0,153 | 1035 | 1099 | |||||||
150 | 360 | 52,4 | 3 | 8 | 0,122 | 1293 | 1374 | |||||||
Normal strength copper-silver alloy |
CuAg0,1 | 80 | 365 | 28,3 | 3 | 10 | 0,229 | ≤0.01777 | ≥6 | 5 | 3 | 0.0038 | 690 | 733 |
100 | 360 | 34,9 | 3 | 10 | 0,183 | 862 | 916 | |||||||
107 | 350 | 36,3 | 3 | 10 | 0,171 | 923 | 980 | |||||||
120 | 350 | 40,7 | 3 | 10 | 0,153 | 1035 | 1099 | |||||||
150 | 350 | 50,9 | 3 | 10 | 0,122 | 1293 | 1374 | |||||||
Copper magnesium alloy |
CuMg0,2 CuMg0,2 (high conductivity) |
80 | 460 | 35,7 | 3 | 10 | 0,289 | ≤0.02240 ≤0.02155 (high conductivity ) |
≥6 | 5 | 3 | 0.0031 | 690 | 733 |
100 | 450 | 43,7 | 3 | 10 | 0,231 | 862 | 916 | |||||||
107 | 440 | 45,7 | 3 | 10 | 0,216 | 923 | 980 | |||||||
120 | 430 | 50,1 | 3 | 10 | 0,192 | 1035 | 1099 | |||||||
150 | 420 | 61.1 | 3 | 10 | 0,154 | 1293 | 1374 | |||||||
Copper magnesium alloy |
CuMg0,5 | 80 | 520 | 40,4 | 3 | 10 | 0,385 | ≤0.02778 | ≥6 | 5 | 3 | 0.0027 | 690 | 733 |
100 | 510 | 49,5 | 3 | 10 | 0,286 | 862 | 916 | |||||||
107 | 500 | 51,9 | 3 | 10 | 0,268 | 923 | 980 | |||||||
120 | 490 | 57,0 | 3 | 10 | 0,239 | 1035 | 1099 | |||||||
150 | 470 | 68,4 | 3 | 10 | 0,191 | 1293 | 1374 | |||||||
Copper-tin alloy |
CuSn0,2 CuSn0,2 (high conductivity) |
80 | 460 | 35,7 | 2 | 8 | 0,309 | ≤0.02395 ≤0.02155 (high conductivity ) |
≥6 | 5 | 3 | 0.0032 | / | / |
100 | 450 | 43,7 | 2.00 | 8.00 | 0,247 | 865 | 919 | |||||||
107 | 430 | 44,6 | 2.00 | 8.00 | 0,231 | 926 | 983 | |||||||
120 | 420 | 48,9 | 2.00 | 8.00 | 0,206 | 1038 | 1103 | |||||||
150 | 420 | 61,1 | 2.00 | 8.00 | 0,165 | 1298 | 1378 |
Jiangyin Electric Alloy Co., Ltd., formerly known as Jiangyin Electric Alloy Factory, was established on June 12, 1985. It is mainly engaged in the research and development, production, and sales of high-speed rail supporting products. Its main products are copper alloy deep processing products, including railway contact wires, railway load-bearing cables, copper alloy busbars, and other copper components.
Since its establishment, the company has been committed to providing customers with high-quality copper alloy products and services with advanced management systems, strong research and development capabilities, excellent product quality, and comprehensive services.
It has successively cooperated with railway bureaus under the Ministry of Railways, such as Shanghai, Guangzhou, Beijing, Zhengzhou, Chengdu, and other railway bureaus; Locomotive and motor production enterprises of the Ministry of Railways, such as CRRC and national motor and electrical appliance production enterprises, as well as well-known domestic and international enterprises such as Xiangtan Electric, Dongfang Electric, Schneider Electric, Siemens, ABB, GE, etc., have established strategic cooperative relationships and become a licensed supplier of copper and copper alloy stranded wire and contact wire for the China Railway Group Electric Gasification Bureau.
Up to now, we has obtained a series of certifications covering ISO9001/IATF16949 quality management, ISO14001 environmental ,management system certification, ISO45001 occupational health and safety management system, China CCC, PCCC,CRCC, CE etc.
In the future, the company will actively further expand its business in the field of copper alloy applications and gradually establish long-term and stable cooperative relationships with well-known international and domestic manufacturers.
