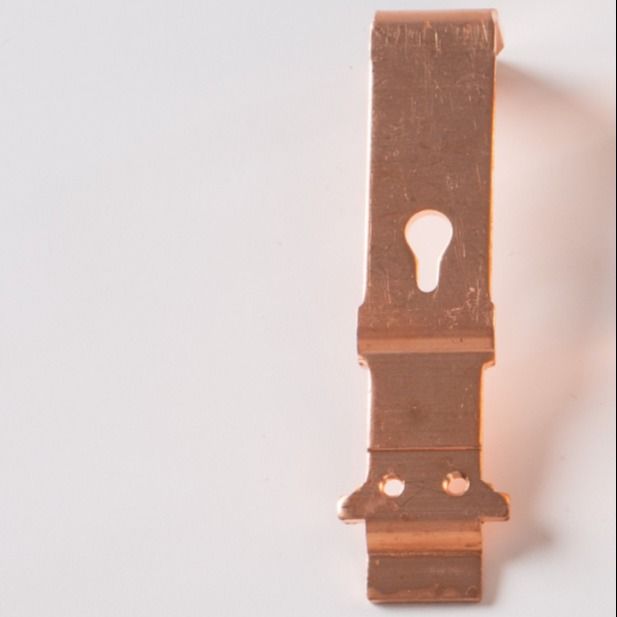

0.1mm-10mm Thickness Precision Copper Stampings for Circuit Breaker Switches
High-precision copper stampings for circuit breaker switches
The specific use of copper stampings will vary depending on the type, size and design requirements of the circuit breaker switch. The electrical conductivity, mechanical strength and machinability of copper stampings make them a common choice in the manufacture of circuit breaker switches. By customising the shape, size and properties of copper stampings, the specific needs of different circuit breaker switches can be met to ensure reliable operation and effective protection.
When selecting copper stampings, it is also necessary to consider their electrical conductivity, abrasion resistance, corrosion resistance and other characteristics to suit different working environments and requirements.
Copper stampings have the following common uses in circuit breaker switches:
- Contacts and contacts: Contacts and contacts in circuit breaker switches are usually made from copper stampings. Copper has good electrical conductivity, which ensures reliable conduction and disconnection of electrical currents.
- Connecting parts: Copper stampings can be used to connect various parts of a circuit breaker switch, such as the frame, operating mechanism and contact system. They provide mechanical connection and electrical conduction.
- Conductive Pathways: Copper stampings can form conductive pathways within a circuit breaker switch to direct current to the proper location for proper switch operation.
Introduction to the copper stamping process:
Stamping is a process that uses a die on a press to shape and size sheet metal or pipe. Copper is a popular material for metal stamping due to its excellent electrical conductivity, ductility, and formability. This makes it ideal for manufacturing conductive components, connectors, terminals, switches, and other electronic parts.
| Grade |
Specification(mm) |
State |
Hardness(HB) |
Tensile strength
(N/mm~2)
|
Elongation(%) |
Volume
resistivity20℃
(Ωmm2/m)
|
Reference standard |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
Customized |
Customized |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
Customized |
Customized |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
About us:
Jiangyin Electric Alloy Co., Ltd., formerly known as Jiangyin Electric Alloy Factory, was established on June 12, 1985. It is mainly engaged in the research and development, production, and sales of high-speed rail supporting products. Its main products are copper alloy deep processing products, including railway contact wires, railway load-bearing cables, copper alloy busbars, and other copper components.
Since its establishment, the company has been committed to providing customers with high-quality copper alloy products and services with advanced management systems, strong research and development capabilities, excellent product quality, and comprehensive services.
It has successively cooperated with railway bureaus under the Ministry of Railways, such as Shanghai, Guangzhou, Beijing, Zhengzhou, Chengdu, and other railway bureaus; Locomotive and motor production enterprises of the Ministry of Railways, such as CRRC and national motor and electrical appliance production enterprises, as well as well-known domestic and international enterprises such as Xiangtan Electric, Dongfang Electric, Schneider Electric, Siemens, ABB, GE, etc., have established strategic cooperative relationships and become a licensed supplier of copper and copper alloy stranded wire and contact wire for the China Railway Group Electric Gasification Bureau.
Up to now, Jiangyin Electric Alloy Co., Ltd. has obtained a series of certifications covering ISO9001/IATF16949 quality management, ISO14001 environmental ,management system certification, ISO45001 occupational health and safety management system, China CCC, PCCC,CRCC, CE etc.
Rich design experience in manufacturing, mature reliable production processes, provide the satisfactory products for our customers, has made our business across both at home and abroad.
In the future, the company will actively further expand its business in the field of copper alloy applications and gradually establish long-term and stable cooperative relationships with well-known international and domestic manufacturers.
Support and Services:
We provide technical support and services for copper contact wire, including:
- Providing technical support for the installation and use of copper contact wire.
- Troubleshooting and resolving any technical issues with copper contact wire.
- Providing technical advice on the maintenance of copper contact wire.
- Providing guidance on the selection of copper contact wire.
Packing and Shipping:
Packaging and Shipping:
- Copper contact wire is packaged in high-quality materials to ensure it is delivered to the customer in good condition.
- The copper contact wire is shipped by air or sea according to customer's requirements.
- We offer tracking number once the copper contact wire is shipped.
