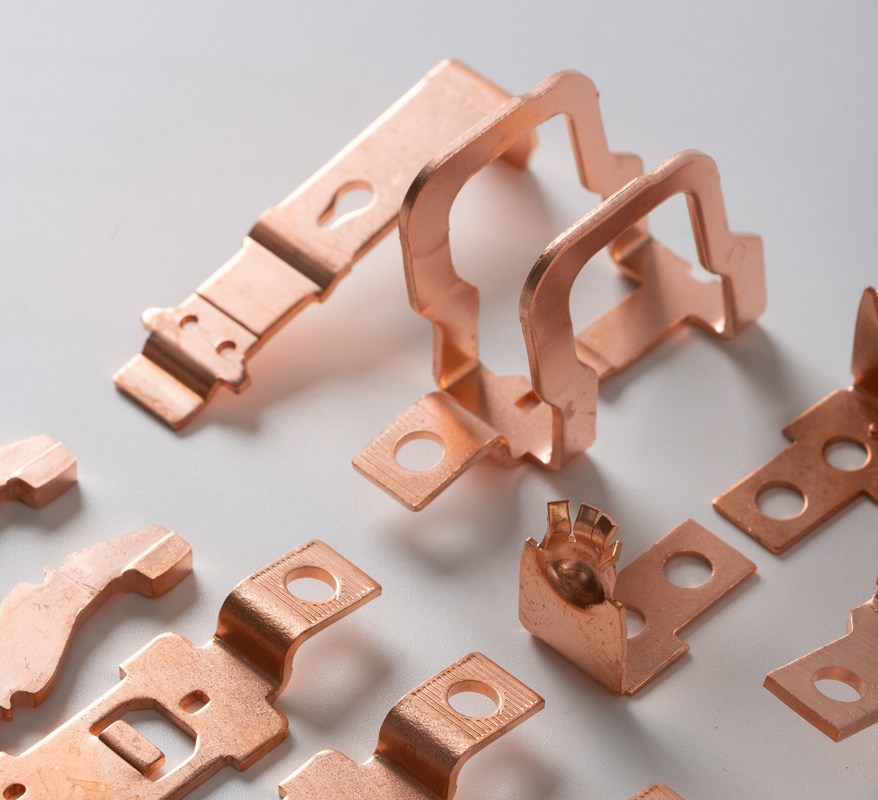

Custom Copper Stampings Increased Efficiency and Reliability for Electrical Equipment
Custom Copper Stampings Increased Efficiency and Reliability for Electrical Equipment
Our customisable copper stampings are designed to meet your specific needs, providing increased performance, efficiency, and reliability for your electrical applications. This is particularly important for complex electrical equipment and unique design projects, making copper stampings an integral part of the electrical industry.
Copper stampings can be customised to offer the following advantages:
- Space saving: depending on the space constraints of the equipment, customised copper stampings can be designed into compact shapes to maximise the use of available space, making the equipment more compact and smaller.
- Integration of multiple functions: customisation can integrate multiple functions into a single copper stamping, reducing the number of components, simplifying the assembly process and reducing costs.
- Adapt to different environments: depending on the special requirements of the application environment, such as high temperatures, corrosion or vibration, customised copper stampings can be selected with appropriate materials and treatments to ensure stability and reliability under harsh conditions.
Introduction to the copper stamping process:
Stamping is a process that uses a die on a press to shape and size sheet metal or pipe. Copper is a popular material for metal stamping due to its excellent electrical conductivity, ductility, and formability. This makes it ideal for manufacturing conductive components, connectors, terminals, switches, and other electronic parts.
| Grade |
Specification(mm) |
State |
Hardness(HB) |
Tensile strength
(N/mm~2)
|
Elongation(%) |
Volume
resistivity20℃
(Ωmm2/m)
|
Reference standard |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
Customized |
Customized |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
Customized |
Customized |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
About us:
Jiangyin Electric Alloy Co., Ltd., formerly known as Jiangyin Electric Alloy Factory, was established on June 12, 1985. It is mainly engaged in the research and development, production, and sales of high-speed rail supporting products. Its main products are copper alloy deep processing products, including railway contact wires, railway load-bearing cables, copper alloy busbars, and other copper components.
Since its establishment, the company has been committed to providing customers with high-quality copper alloy products and services with advanced management systems, strong research and development capabilities, excellent product quality, and comprehensive services.
It has successively cooperated with railway bureaus under the Ministry of Railways, such as Shanghai, Guangzhou, Beijing, Zhengzhou, Chengdu, and other railway bureaus; Locomotive and motor production enterprises of the Ministry of Railways, such as CRRC and national motor and electrical appliance production enterprises, as well as well-known domestic and international enterprises such as Xiangtan Electric, Dongfang Electric, Schneider Electric, Siemens, ABB, GE, etc., have established strategic cooperative relationships and become a licensed supplier of copper and copper alloy stranded wire and contact wire for the China Railway Group Electric Gasification Bureau.
Up to now, Jiangyin Electric Alloy Co., Ltd. has obtained a series of certifications covering ISO9001/IATF16949 quality management, ISO14001 environmental ,management system certification, ISO45001 occupational health and safety management system, China CCC, PCCC,CRCC, CE etc.
Rich design experience in manufacturing, mature reliable production processes, provide the satisfactory products for our customers, has made our business across both at home and abroad.
In the future, the company will actively further expand its business in the field of copper alloy applications and gradually establish long-term and stable cooperative relationships with well-known international and domestic manufacturers.
Support and Services:
We provide technical support and services for copper contact wire, including:
- Providing technical support for the installation and use of copper contact wire.
- Troubleshooting and resolving any technical issues with copper contact wire.
- Providing technical advice on the maintenance of copper contact wire.
- Providing guidance on the selection of copper contact wire.
Packing and Shipping:
Packaging and Shipping:
- Copper contact wire is packaged in high-quality materials to ensure it is delivered to the customer in good condition.
- The copper contact wire is shipped by air or sea according to customer's requirements.
- We offer tracking number once the copper contact wire is shipped.
