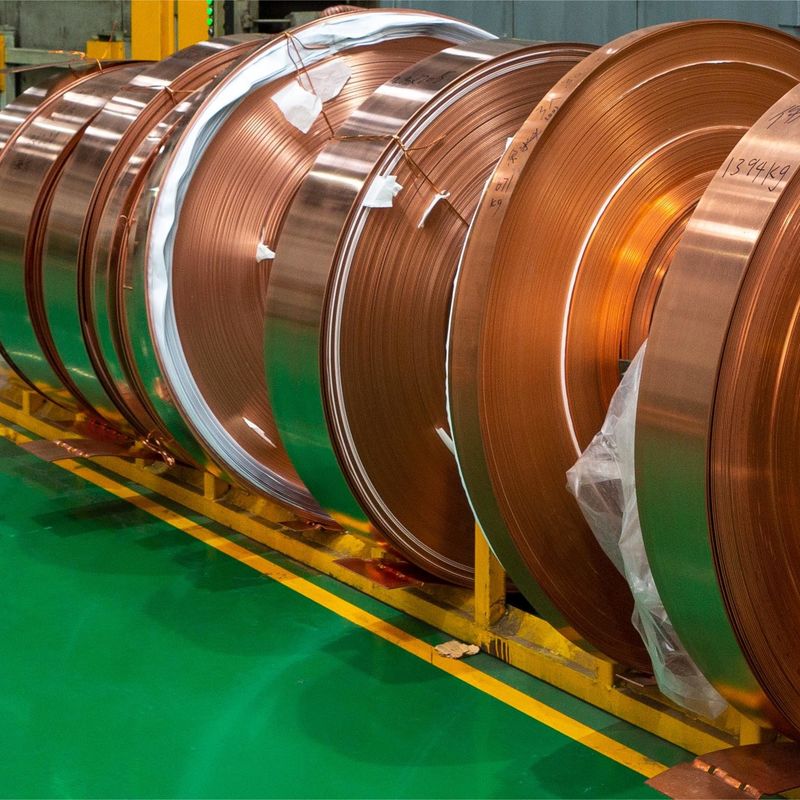

Copper Strip Roll Recyclability And Sustainability For Electrical
Copper strip roll Recyclability and Sustainability for Electrical
There are many benefits that make copper strip a versatile and valuable material in a wide range of industries, including electrical, electronic, heat transfer, architectural, artistic and many others. Its combination of excellent electrical and thermal conductivity, corrosion resistance, formability, antimicrobial properties and recyclability contribute to its widespread use and preference in many applications.
Electrical Conductivity: Copper strip rolls are widely used in electrical and electronic applications due to copper's excellent electrical conductivity. They serve as conductive elements in transformers, motors, generators, and other electrical devices. Copper strip rolls ensure efficient current flow with low resistance, enabling the reliable transmission and distribution of electricity.
Conductive Connectors: Copper strip rolls are utilized as conductive connectors or busbars in power systems. They provide a reliable and low-resistance pathway for the transfer of electrical energy within electrical panels, switchgear, and distribution boards. Copper strip rolls allow for efficient power distribution and help minimize energy losses.Industrial and Manufacturing Applications: Copper strip rolls find usage in diverse Industrial and manufacturing sectors:They are employed in fabrication, stamping, and forming processes to create components, parts, and prototypes for various industries, including automotive, aerospace, electronics, and machinery.
| Copper strip roll |
| Grade |
Specification(mm) |
State |
Hardness(HB) |
Tensile strength(N/mm~2) |
Elongation(%) |
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
Remark |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A |
0.8-6 |
20-880 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
The roll diameter can be customized |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
0.8-6 |
20-150 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| R230 |
/ |
≥230 |
≥10 |
| Precision of piece: |
General purpose or customized |
| Package: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
About us:
Jiangyin Electric Alloy Co., Ltd., formerly known as Jiangyin Electric Alloy Factory, was established on June 12, 1985. It is mainly engaged in the research and development, production, and sales of high-speed rail supporting products. Its main products are copper alloy deep processing products, including railway contact wires, railway load-bearing cables, copper alloy busbars, and other copper components.
Since its establishment, the company has been committed to providing customers with high-quality copper alloy products and services with advanced management systems, strong research and development capabilities, excellent product quality, and comprehensive services.
It has successively cooperated with railway bureaus under the Ministry of Railways, such as Shanghai, Guangzhou, Beijing, Zhengzhou, Chengdu, and other railway bureaus; Locomotive and motor production enterprises of the Ministry of Railways, such as CRRC and national motor and electrical appliance production enterprises, as well as well-known domestic and international enterprises such as Xiangtan Electric, Dongfang Electric, Schneider Electric, Siemens, ABB, GE, etc., have established strategic cooperative relationships and become a licensed supplier of copper and copper alloy stranded wire and contact wire for the China Railway Group Electric Gasification Bureau.
Up to now, Jiangyin Electric Alloy Co., Ltd. has obtained a series of certifications covering ISO9001/IATF16949 quality management, ISO14001 environmental ,management system certification, ISO45001 occupational health and safety management system, China CCC, PCCC,CRCC, CE etc.
Rich design experience in manufacturing, mature reliable production processes, provide the satisfactory products for our customers, has made our business across both at home and abroad.
In the future, the company will actively further expand its business in the field of copper alloy applications and gradually establish long-term and stable cooperative relationships with well-known international and domestic manufacturers.
Support and Services:
We provide technical support and services for copper contact wire, including:
- Providing technical support for the installation and use of copper contact wire.
- Troubleshooting and resolving any technical issues with copper contact wire.
- Providing technical advice on the maintenance of copper contact wire.
- Providing guidance on the selection of copper contact wire.
Packing and Shipping:
Packaging and Shipping:
- Copper contact wire is packaged in high-quality materials to ensure it is delivered to the customer in good condition.
- The copper contact wire is shipped by air or sea according to customer's requirements.
- We offer tracking number once the copper contact wire is shipped.
