Highlight:
DIN-EN 13601 copper profile
, customized length copper profile
, 10mm thickness extruded copper profiles

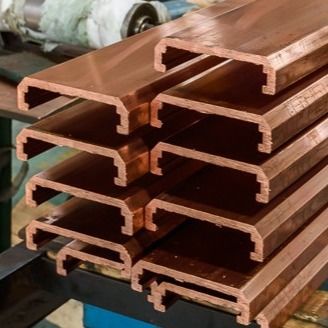

Corrosion & Resistance Durability Copper Profiles With U-Section
Corrosion & resistance durability Copper Profiles with U-section
The production of copper profiles involves the shaping of copper or copper alloys in extruding, rolling or drawing processes. They are available in a wide range of shapes and sizes. These include rectangular, square, round and special sections. The specific requirements of the application determine the choice of copper alloy and profile shape.
Copper profiles offer versatility and a range of benefits across all industries, including electrical, architectural, industrial, artistic and transportation. Their unique properties make them invaluable in achieving efficient functionality, visual appeal and durability in various applications.
Electrical Conductivity: Copper profiles are widely used in electrical and electronic applications due to copper's high electrical conductivity.
Copper profiles are employed in busbars, conductive bars, and electrical connectors to ensure efficient and reliable electrical current transmission with minimal resistance.
Heat Transfer: Copper's excellent thermal conductivity makes copper profiles suitable for heat transfer applications. Copper profiles, such as heat sinks or heat exchanger fins, are used to dissipate or transfer heat effectively in various systems, including electronics, power generation, and cooling applications.
Plumbing and Fluid Systems: Copper profiles are commonly used in plumbing and fluid systems due to copper's corrosion resistance and reliability. Copper profiles, such as pipes, tubes, and fittings, are used for water supply, heating, cooling, and gas distribution systems in residential, commercial, and industrial settings.
| Copper profiles |
| Grade |
Specification
(mm)
|
State |
Hardness
(HB)
|
Tensile strength
(N/mm~2)
|
Elongation
(%)
|
Volume resistivity20℃(Ωmm2/m) |
Reference standard |
Remark |
| Thickness |
width |
Cu-ETP CW004A
Cu-OF CW008A
CuAg0.04 CW011A
CuAg0.07 CW012A
CuAg0.10 CW013A |
1.5-60 |
10-270 |
H035 |
35-65 |
/ |
/ |
≤0.017241 |
DIN-EN 13601 |
The length can be customized |
| H065 |
65-90 |
/ |
/ |
≤0.01777 |
| Precision of piece: |
General purpose or customized |
| Roughness of piece: |
General purpose or customized |
| Quality standard: |
DIN, ASTM, GOST, GB, JIS, ANSI, BS; |
| Drawing format: |
JPEG,PDF,AI,PSD,DWG,DXF,IGS,STEP; |
| Products certification: |
ISO9001:2008, CE, RoHS, SGS; |
| Dimension: |
Customizable |
About us:
Jiangyin Electric Alloy Co., Ltd., formerly known as Jiangyin Electric Alloy Factory, was established on June 12, 1985. It is mainly engaged in the research and development, production, and sales of high-speed rail supporting products. Its main products are copper alloy deep processing products, including railway contact wires, railway load-bearing cables, copper alloy busbars, and other copper components.
Since its establishment, the company has been committed to providing customers with high-quality copper alloy products and services with advanced management systems, strong research and development capabilities, excellent product quality, and comprehensive services.
It has successively cooperated with railway bureaus under the Ministry of Railways, such as Shanghai, Guangzhou, Beijing, Zhengzhou, Chengdu, and other railway bureaus; Locomotive and motor production enterprises of the Ministry of Railways, such as CRRC and national motor and electrical appliance production enterprises, as well as well-known domestic and international enterprises such as Xiangtan Electric, Dongfang Electric, Schneider Electric, Siemens, ABB, GE, etc., have established strategic cooperative relationships and become a licensed supplier of copper and copper alloy stranded wire and contact wire for the China Railway Group Electric Gasification Bureau.
Up to now, Jiangyin Electric Alloy Co., Ltd. has obtained a series of certifications covering ISO9001/IATF16949 quality management, ISO14001 environmental ,management system certification, ISO45001 occupational health and safety management system, China CCC, PCCC,CRCC, CE etc.
Rich design experience in manufacturing, mature reliable production processes, provide the satisfactory products for our customers, has made our business across both at home and abroad.
In the future, the company will actively further expand its business in the field of copper alloy applications and gradually establish long-term and stable cooperative relationships with well-known international and domestic manufacturers.
Support and Services:
We provide technical support and services for copper contact wire, including:
- Providing technical support for the installation and use of copper contact wire.
- Troubleshooting and resolving any technical issues with copper contact wire.
- Providing technical advice on the maintenance of copper contact wire.
- Providing guidance on the selection of copper contact wire.
Packing and Shipping:
Packaging and Shipping:
- Copper contact wire is packaged in high-quality materials to ensure it is delivered to the customer in good condition.
- The copper contact wire is shipped by air or sea according to customer's requirements.
- We offer tracking number once the copper contact wire is shipped.
